Getting Started With Your Broadband
Installing your router
Connect the first point of a phone cable (grey color) to a free phone plug and the other cable point to the splitter at the "LINE" socket.
At splitter’s "PHONE" socket:
- If you have a simple phone line (PSTN), connect your phone device using the device phone cable.
- If you have an ISDN phone line, connect the U port (at the lower device side) of the ISDN Network Terminal using the device phone cable. Next, connect you phone devices to the ISDN Network Terminal.
Connect the first point of the second phone cable (grey color) to router’s "DSL" port and the other end to the splitter at the "MODEM" socket.
Connect the first point of the Ethernet’s cable (yellow color) to the corresponding Ethernet port at your computer’s back side and the other cable point to any of the 4 router’s Ethernet ports (yellow color).
Connect the power cable to router’s “POWER” socket and to the power plug.
Press the On/off button at router’s back side.
Check router light indications after a few seconds.
- a) "Power" indication (power source) must be green and stable
- b) "DSL" indication (VDSL connection) must be green and stable
- c) "Internet" indication (access to the Internet) must be green
- d) One of the “LAN” indications (PC-router connection) must be green
- e) "WLAN" indication (active wireless network) must be green
If the light indications are different, router settings may need changes.
Now you’re surfing the Internet!
DownloadsDevice Manual PSTN Firmware update (.zip) ISDN Firmware update (.zip)
STILL NEED HELP TO CONNECT?
Call our technical support team at 13700.
Connecting your wireless router
Your wireless network is active by default. You can open/close it by pressing the "WLAN" at router’s back side and keeping it pressed for about 4 seconds (check the "WLAN" light indication).
To connect to the wireless network, through the appropriate computer interface you have to find the available wireless networks, choose the desirable network (WLAN SSID) and type the unique 10-digit password key (WLAN Security), which can be found on the sticker at the router back side.
Setting your wireless network

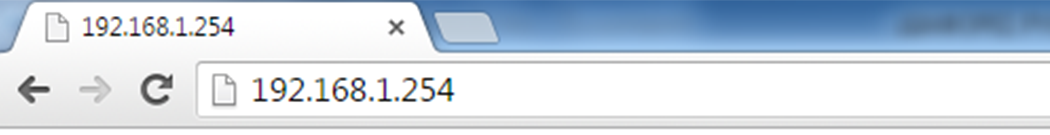

1. Open the browser of your choice (Internet Explorer, Mozilla Firefox, Google Chrome, etc.) and type the address 192.168.1.254 in the address bar to connect to your router management environment.
2. The first time you log in , type "admin" in the Username and Password fields and next press Login.
Once you access the router page, replace the default username and password with those of your choice. Choose "Maintenance", fill in the New Password, Confirm Password fields and then press "SAVE" to save the change.
3. In the top menu select "Interface Setup" and then "Wireless".
4.The wireless network settings page appears. Complete the fields according to the settings you want and then press “Save”.
To activate the wireless network:
- Keep the Access Point option "Activated". If you want to deactivate your wireless network, choose "Deactivated" or else press the WLAN button located in the router’s back side.
- In the Channel field choose "Auto".
To name the wireless network:
- In the Broadcast SSID keep the choice "Yes" so that the wireless network name is visible.
- In the WPS Settings->SSID field, type the name of your choice.
To set the security level of the wireless network:
- In the Authentitication Type field select the safety of the wireless network. For maximum safety, we suggest you choose WPA2-PSK-AES or WPA- / WPA2-PSK. If you choose "Disabled", your router will be open and everyone could connect to your wireless network without entering a password.
- In the Pre-Shared Key field type in Latin characters the password you wish to secure the wireless network. Memorize the password you have typed, because you will be asked for it on each computer you connect.
5.Press Save to save your changes.
ΤΗΕ FIRST TIME YOU LOG IN TO THE ROUTER'S PAGE, DON’T FORGET TO REPLACE THE DEFAULT USERNAME AND PASSWORD WITH THOSE OF YOUR CHOICE.
Checking your router synch rate
1. Make sure you have connected to your router, either with a cable or wirelessly
2. Start any browser and type in 192.168.1.254 in the address field in order to access your router’s graphical user interface.
3. Type your Username and Password.
4. Click on the "Status" tab. The following menu appears:
5. The synchronization (synch) rate in kbps appears in the ‘Data Rate’ field. The download speed appears first, followed by the upload rate.
Your router basic features
- ADSL2+ for speeds of up to 24Mbps
- Wireless: IEEE 802.11b/g/n
- IPv6 support
- 4 x Ethernet ports (RJ-45 10/100)
- Built-in Firewall
- Wireless Security WPA/WPA2-PSK
- Support for Bridge/Router mode, NAT, DHCP server, UPnP
- Content Filtering
- 2 years warranty
